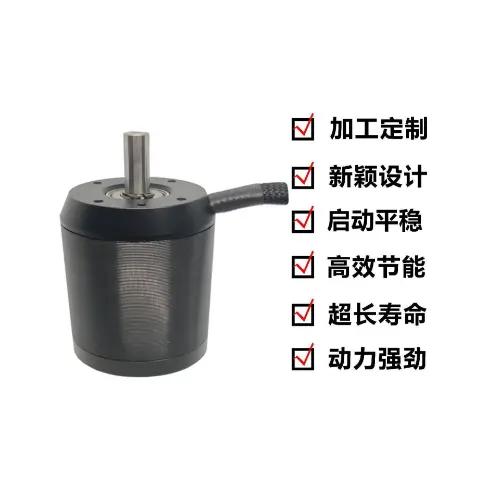

Description
| 1 | Voltage | V | 12.0 | 10.0 | 9.0 |
| 2 | Terminal resistance | Ω | 2.2 | 3.2 | 9.0 |
| 3 | Terminal inductance | mH | 0.29 | 0.47 | 1.2 |
| 4 | No-load speed | rpm | 28000 | 17800 | 10800 |
| 5 | No-load current | A | 0.2 | 0.1 | 0.05 |
| 6 | Stall torque | mNm | 21.4 | 15.7 | 7.1 |
| 7 | Stall current | A | 5.5 | 3.1 | 1.0 |
| 8 | Nominal torque | mNm | 3.5 | 4.1 | 4.0 |
| 9 | Nominal speed | rpm | 21420 | 11120 | 4230 |
| 10 | Nominal current | A | 1.0 | 0.9 | 0.52 |
| 11 | Max. output power | W | 15.0 | 7.3 | 2.0 |
| 12 | Max. efficiency | % | 72 | 67 | 60 |
| 13 | Back-EMF constant | mV/rpm | 0.4 | 0.5 | 0.8 |
| 14 | Torque constant | mNm/A | 4.0 | 5.2 | 7.5 |
| 15 | Speed/torque gradient | rpm/mNm | 1311 | 1133 | 1503 |
| 16 | Rotor inertia | gcm² | 2.8 | 2.8 | 2.8 |
| 17 | Weight | g | 9.6 | 9.6 | 9.6 |
| 18 | Thermal resistance housing-ambient | K/W | – | 12.5 | – |
| 19 | Thermal resistance winding-housing | K/W | – | 12 | – |
| 20 | Thermal time constant motor | s | – | 354 | – |
| 21 | Thermal time constant winding | s | – | 15 | – |
| 22 | Operating temperature range | °C | – | -40~+120 | – |
| 23 | Thermal class of winding | °C | – | 155 | – |
| 24 | Axial play | mm | – | 0.012 | – |
| 25 | Radial play | mm | – | 0.008 | – |
| 26 | Axial load dynamic | N | – | 1.5 | – |
| 27 | Axial load static | N | – | 37 | – |
| 28 | Radial load at 3 mm from mounting face | N | – | 12 | – |
| 29 | No. of pole pairs | – | – | 4 | – |
| 30 | Bearings | – | – | 2 ball bearings | – |
| 31 | Commutation | – | – | Sensorless | – |
| 32 | Protection class | – | – | IP 20 | – |
