Description
P&Q CURVE (AT RATED VOLTAGE)

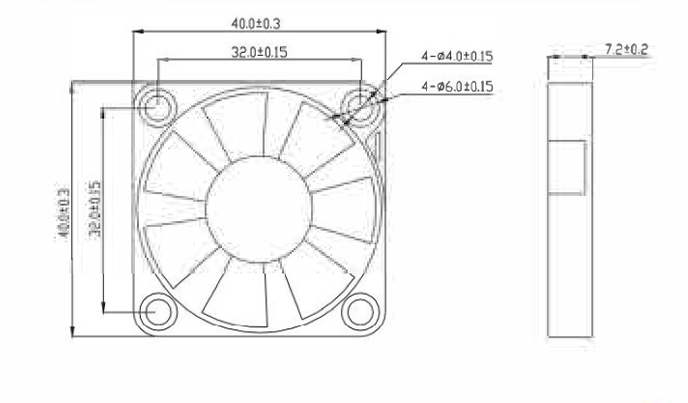

DIMENSIONS DRAWING
Available Functions
Motor Protection
| RP | SS | LP | CL | OVP |
| ◯ | ◯ |
Signal Output
| FG | RD | RDB | LD |
| ◯ | ◯ |
Speed Control Mode
| PWM | TC | VC | CC | CS |
| ◯ | ◯ | ◯ | ◯ |
| MODEL | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m³/min | CFM | mmH2O | INH2O | DB-A |
| SP4007L05 | 5 | 4.3 to 5.4 | 0.12 | 0.60 | 4500 | 0.07 | 2.58 | 1.10 | 0.04 | 24.0 |
| SP4007L12 | 12 | 7.0 to 13.5 | 0.05 | 0.60 | ||||||
| SP4007M05 | 5 | 4.3 to 5.4 | 0.18 | 0.90 | 6000 | 0.11 | 3.84 | 2.08 | 0.08 | 30.0 |
| SP4007M12 | 12 | 7.0 to 13.5 | 0.07 | 0.84 | ||||||
| SP4007H05 | 5 | 4.3 to 5.4 | 0.22 | 1.10 | 7000 | 0.12 | 4.24 | 2.16 | 0.09 | 33.0 |
| SP4007H12 | 12 | 7.0 to 13.5 | 0.09 | 1.08 | ||||||
| SP4007H05-HH | 5 | 4.3 to 5.4 | 0.25 | 1.25 | 8000 | 0.13 | 4.72 | 3.04 | 0.12 | 35.0 |
| SP4007H12-HH | 12 | 7.0 to 13.5 | 0.10 | 1.20 | ||||||
