Description
GEARBOX DATA:
| Gearbox length “L” mm | Motor | Motor length “L” mm |
|---|---|---|
| 9 | N20 | 15 |

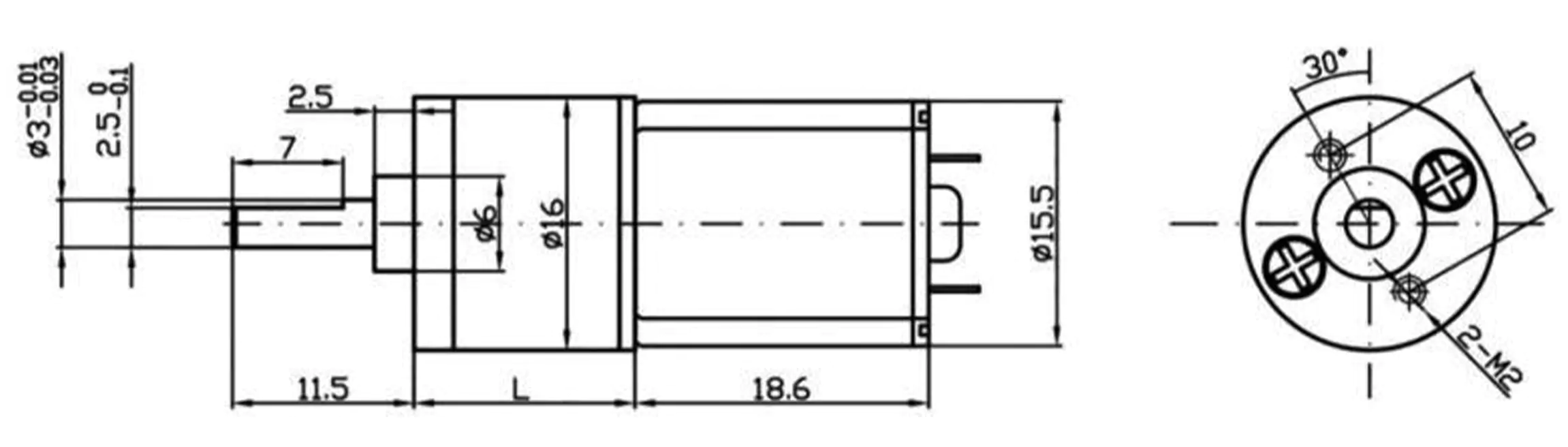

DIMENSIONS
Motor Parameters/MOTOR DATA:
| 电机型号 Motor model |
Rated voltage (V) | No-load | Load | Stall | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Current(A) | Speed(rpm) | Current(A) | Speed(rpm) | Torque(Kg.cm) | Power(W) | Torque(Kg.cm) | Current(A) | |||
| XFC-0300038500 | 3 | ≤0.075 | 8500 | ≤0.28 | 6550 | 0.005 | 0.34 | ≥0.02 | ≥0.6 | |
| XFC-0300061040 | 6 | ≤0.065 | 10400 | ≤0.19 | 7800 | 0.005 | 0.39 | ≥0.018 | ≥0.4 | |
