Description
GEARBOX DATA:
| Reduction stage | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|
| Reduction ratio | 18K 23K | 35K 44K 55K | 67K 80K 105K 132K | 161K 202K 252K 316K | 386K 484K 606K 758K |
| Gearbox length “L” mm | 16.2 | 17.7 | 19.2 | 20.7 | 22.2 |
| Gearbox efficiency | 65% | 59% | 53% | 48% | 43% |

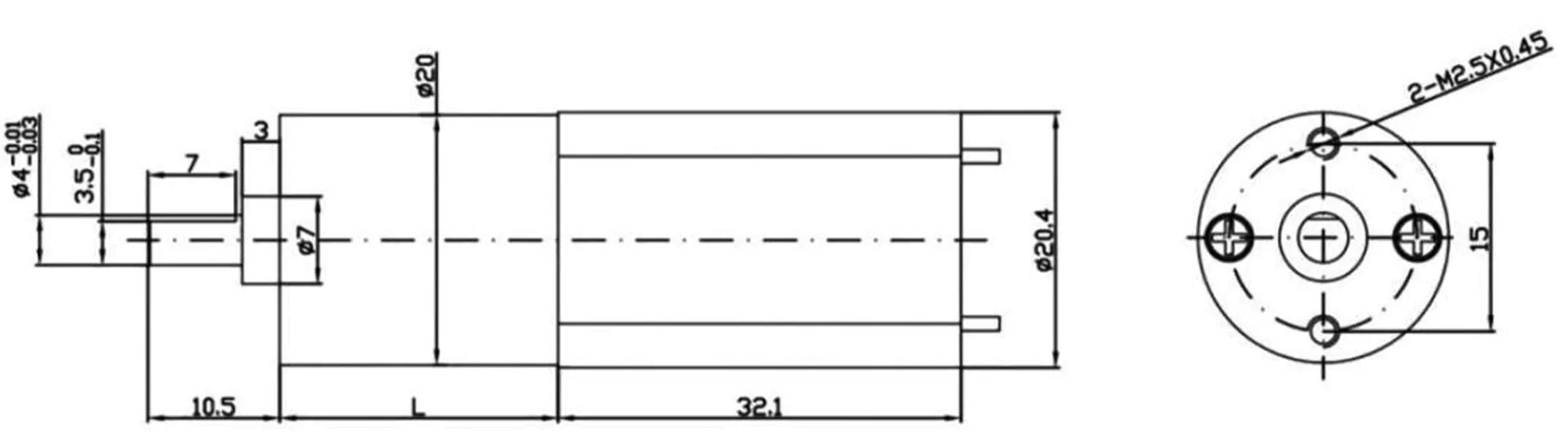

DIMENSIONS
Motor Parameters/MOTOR DATA:
| Motor Model | Rated Voltage | No Load | Load | Stall | |||||
| Current(A) | Speed(rpm) | Current(A) | Speed(rpm) | Torque (kg.cm) | Power(W) | Torque (kg.cm) | Current(A) | ||
| XFC-1800055000 | 5 | ≤0.075 | 5000 | ≤0.158 | 4000 | 0.019 | 0.8 | ≥0.085 | ≥0.79 |
| XFC-1800128000 | 12 | ≤0.035 | 8000 | ≤0.300 | 6200 | 0.026 | 1.69 | ≥0.104 | ≥0.77 |
| XFC-1800249000 | 24 | ≤0.036 | 9000 | ≤0.12 | 7600 | 0.015 | 1.17 | ≥0.006 | ≥0.47 |
