Description
GEARBOX DATA:
| Reduction Stage | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Reduction Ratio | 4.3k, 5.4k | 19k, 24k, 29k, | 84k, 104k, 128k, 157k | 370k, 455k, 560k, 690k, 850k |
| Gearbox Length “L” mm | 14.3 | 18.5 | 27.7 | 26.9 |
| Gearbox Efficiency | 90% | 81% | 73% | 65% |

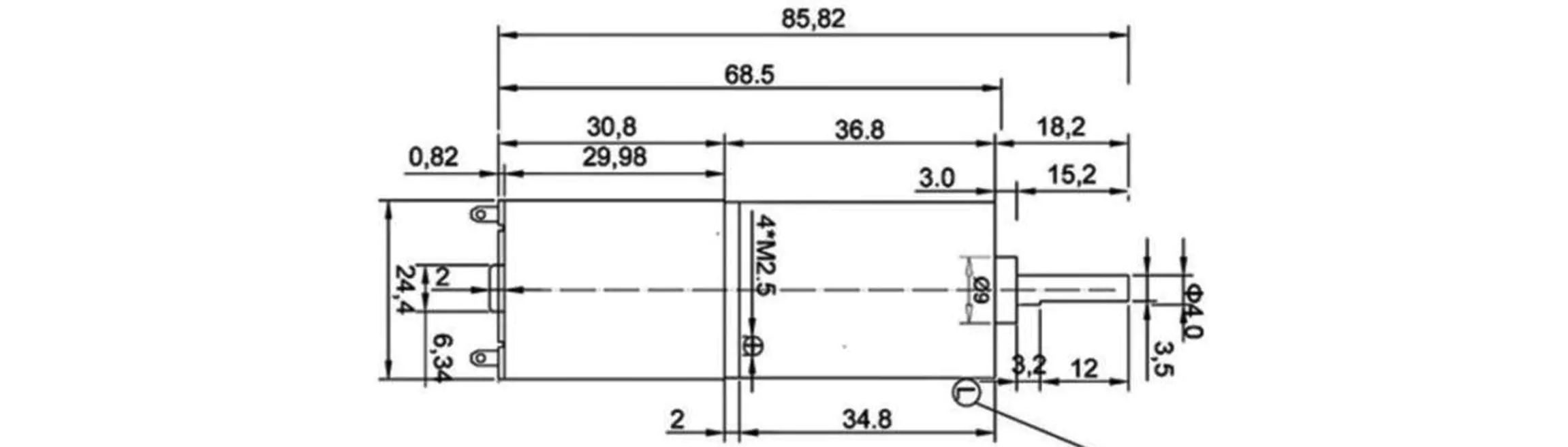

DIMENSIONS
Motor Parameters/MOTOR DATA:
| Motor Model | Rated Voltage | No Load | Load | Stall | |||||
| Current(A) | Speed(rpm) | Current(A) | Speed(rpm) | Torque (kg.cm) | Power(W) | Torque (kg.cm) | Current(A) | ||
| XFC-370065000 | 6 | ≤0.045 | 5000 | ≤0.24 | 4200 | 0.02 | 0.88 | ≥0.112 | ≥1.1 |
| XFC-3700126000 | 12 | ≤0.042 | 6000 | ≤0.15 | 5000 | 0.02 | 1.05 | ≥0.108 | ≥0.98 |
| XFC-3700121200 | 12 | ≤0.09 | 12000 | ≤0.52 | 10300 | 0.0028 | 2.96 | ≥0.177 | ≥2.5 |
| XFC-3700246000 | 24 | ≤0.021 | 6000 | ≤0.11 | 5100 | 0.0021 | 1.12 | ≥0.126 | ≥0.44 |
| XFC-3700249000 | 24 | ≤0.043 | 9000 | ≤0.21 | 7800 | 0.027 | 2.2 | ≥0.182 | ≥0.95 |
