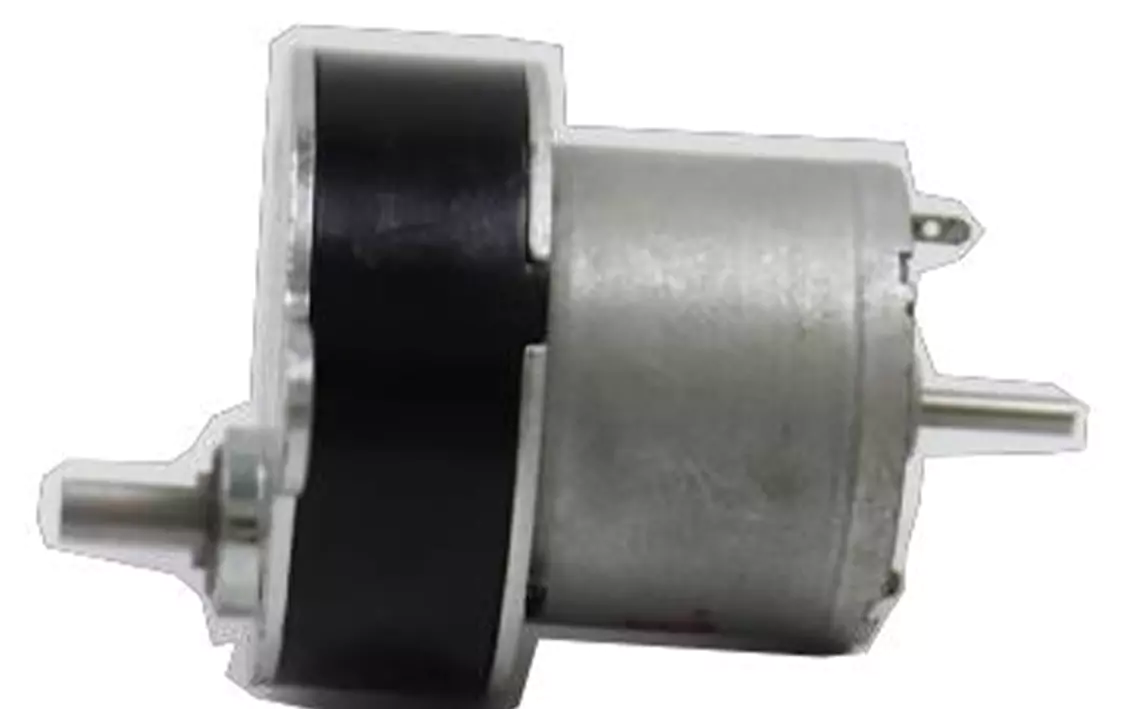

Description
GEARBOX DATA:
| Gearbox length “L” mm | Motor | Motor length “L” mm |
|---|---|---|
| 10.2 | RF/RK-310 | 18.1 |

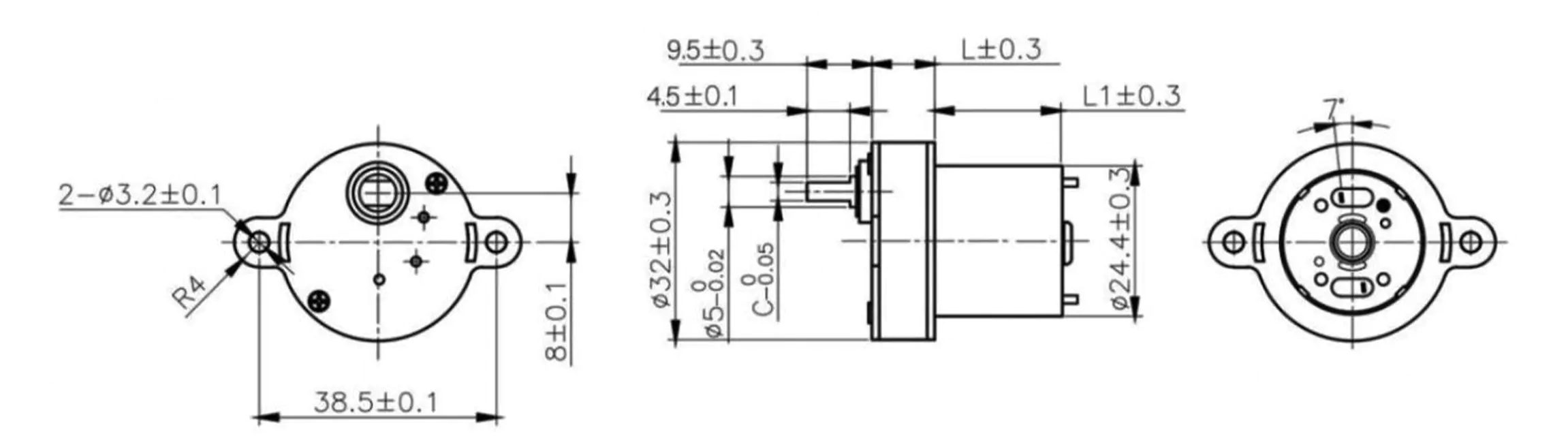

DIMENSIONS
Motor Parameters/MOTOR DATA:
| Motor Model | Rated Voltage | No Load | Load | Stall | Reduction Ratio | |||||
| Current(A) | Speed(rpm) | Current(A) | Speed(rpm) | Torque (kg.cm) | Power(W) | Torque (kg.cm) | Current(A) | |||
| XFC-32B310-10 | 3 | 0.01 | 114 | 0.02 | 85 | 1.4 | 0.01 | 0.05 | 0.12 | 10 |
| XFC-32B310-44 | 0.01 | 26 | 0.02 | 19 | 6.1 | 0.06 | 0.2 | 44 | ||
| XFC-32B310-56 | 0.011 | 20 | 0.022 | 15 | 7.7 | 0.08 | 0.26 | 56 | ||
| XFC-32B310-90 | 0.011 | 13 | 0.022 | 9 | 12.4 | 0.13 | 0.42 | 90 | ||
| XFC-32B310-130 | 0.011 | 9 | 0.022 | 7 | 17.9 | 0.18 | 0.6 | 130 | ||
| XFC-32B310-142 | 0.011 | 8 | 0.022 | 6 | 19.6 | 0.2 | 0.66 | 142 | ||
| XFC-32B310-227 | 0.013 | 5 | 0.025 | 4 | 31.3 | 0.32 | 1.05 | 227 | ||
| XFC-32B310-360 | 0.013 | 3 | 0.025 | 2 | 49.7 | 0.51 | 1.67 | 360 | ||
