Description
GEARBOX DATA:
| Reduction stage | 2 | 3 | 4 | 5 | 6 | 7 |
|---|---|---|---|---|---|---|
| Reduction ratio | 6.8K 10K | 20K 30K | 61K 90K | 104K 122K 184K 270K | 311K 552K 414K 810K | 1243K 1656K 2430K |
| Gearbox length “L” mm | 19 | 22.5 | 25 | 27.5 | 30 | 32.5 |
| Gearbox efficiency | 81% | 73% | 65% | 59% | 53% | 48% |

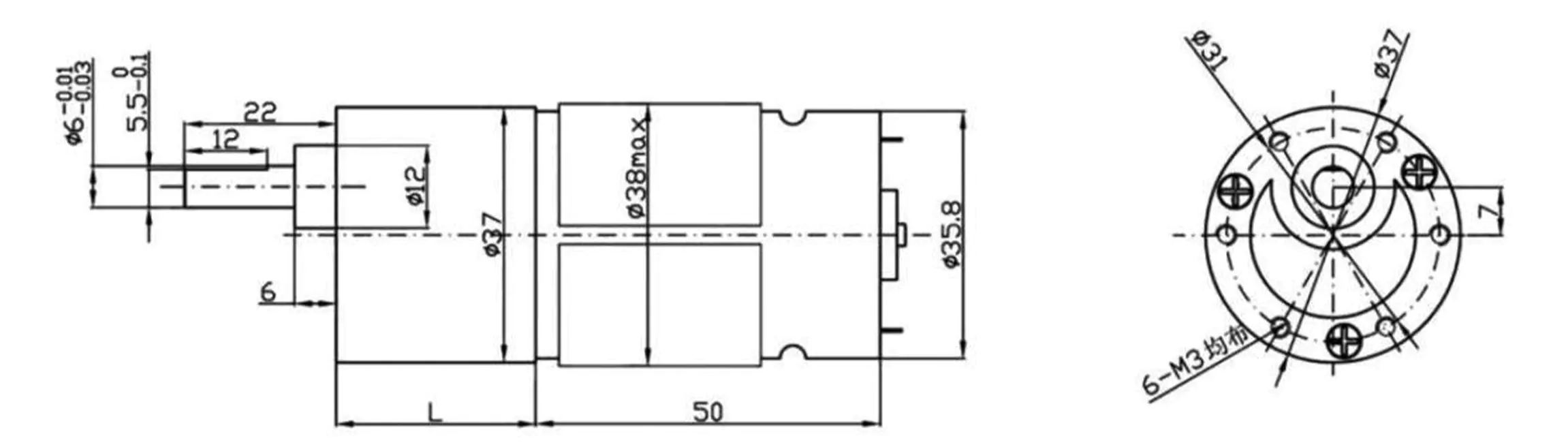

DIMENSIONS
Motor Parameters/MOTOR DATA:
| Motor Model | Rated Voltage | No Load | Load | Stall | |||||
| Current(A) | Speed(rpm) | Current(A) | Speed(rpm) | Torque (kg.cm) | Power(W) | Torque (kg.cm) | Current(A) | ||
| XFC-5450123000 | 12 | ≤0.12 | 3000 | ≤0.282 | 2400 | 0.112 | 2.8 | ≥0.5 | ≥1.2 |
| XFC-5450243000 | 24 | ≤0.092 | 3000 | ≤0.229 | 2400 | 0.086 | 2.2 | ≥0.387 | ≥0.97 |
| XFC-5450246000 | 24 | ≤0.192 | 6000 | ≤0.765 | 4800 | 0.172 | 8.7 | ≥0.77 | ≥3.25 |
