Description
GEARBOX DATA:
| Reduction stage | 2 | 3 | 4 | 5 | 6 | 7 |
|---|---|---|---|---|---|---|
| Reduction ratio | 6.8K 10K | 20K 30K | 61K 90K | 104K 122K 184K 270K | 311K 552K 414K 810K | 1243K 1656K 2430K |
| Gearbox length “L” mm | 19 | 22.5 | 25 | 27.5 | 30 | 32.5 |
| Gearbox efficiency | 81% | 73% | 65% | 59% | 53% | 48% |

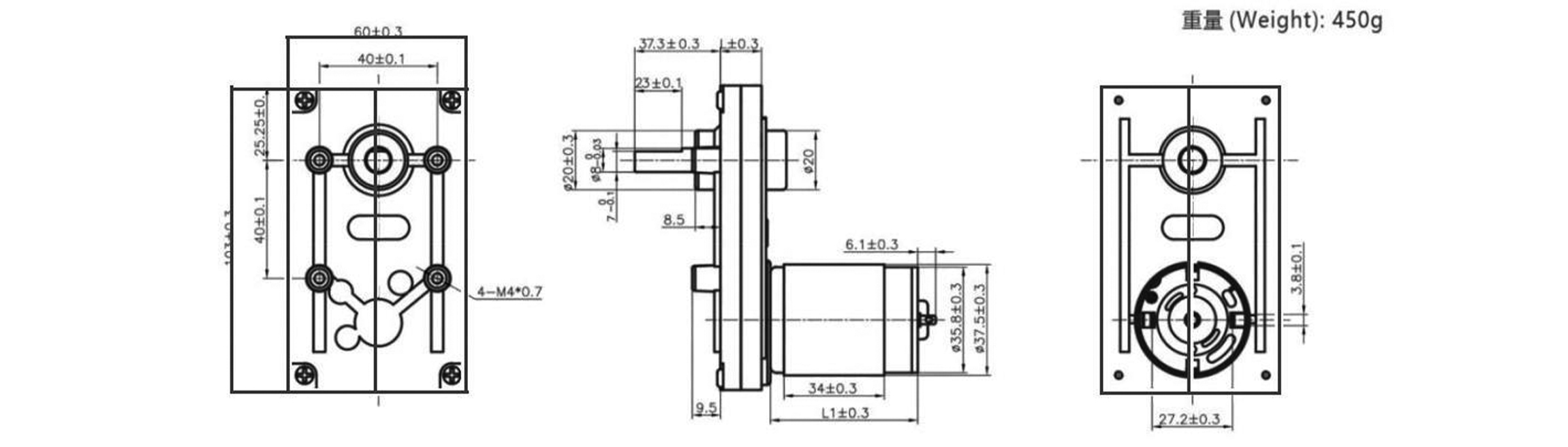

DIMENSIONS
Motor Parameters/MOTOR DATA:
| Motor Model | Rated Voltage | No Load | Load | Stall | Reduction Ratio | ||||||
| Current(A) | Speed(rpm) | Current(A) | Speed(rpm) | Torque (kg.cm) | Power(W) | Torque (kg.cm) | Current(A) | ||||
| XFC-60A555-73 | 24 | 0.38 | 90 | 1.79 | 70 | 2530 | 25.8 | 92.13 | 6.73 | 73 | |
