Description
GEARBOX DATA:
| Gearbox length “L” mm | Motor | Motor length “L” mm |
|---|---|---|
| 18 | RS-775 | 66.5 |

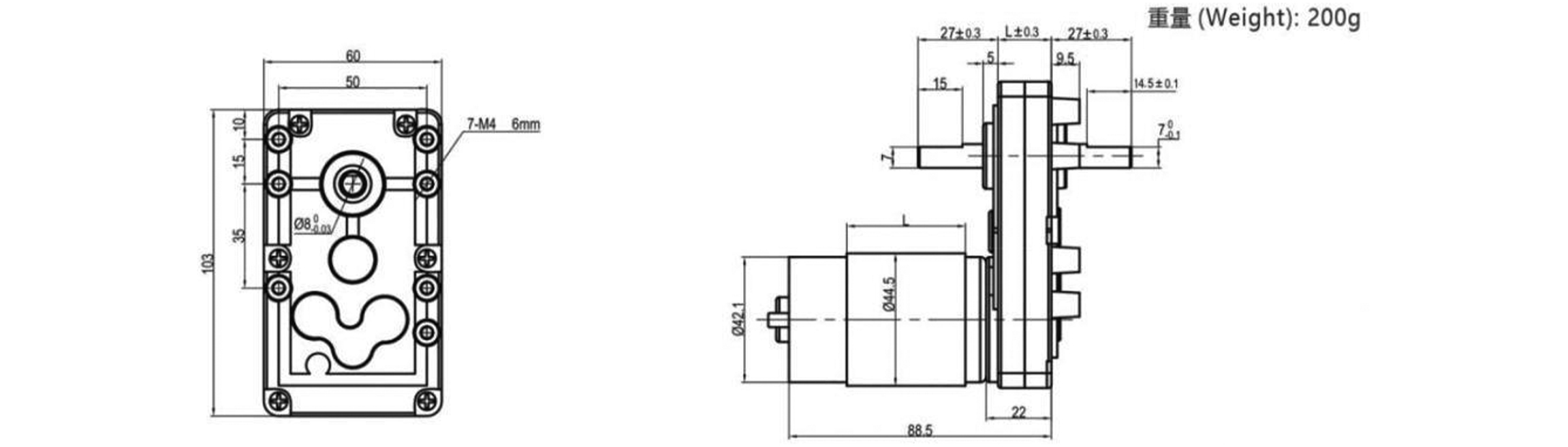

DIMENSIONS
Motor Parameters/MOTOR DATA:
| Motor Model | Rated Voltage | No Load | Load | Stall | Reduction Ratio | ||||||
| Current(A) | Speed(rpm) | Current(A) | Speed(rpm) | Torque (kg.cm) | Power(W) | Torque (kg.cm) | Current(A) | ||||
| XFC-60A775-59 | 24 | 0.35 | 65 | 1.36 | 52 | 2536.6 | 25.89 | 77.6 | 59 | ||
| XFC-60A775-73 | 24 | 0.35 | 53 | 1.36 | 42 | 3138.5 | 31 | 96.01 | 5.25 | 73 | |
| XFC-60A775-132 | 24 | 0.39 | 29 | 1.51 | 23 | 4050.2 | 41.3 | 126.24 | 132 | ||
