Description

Basic Info:

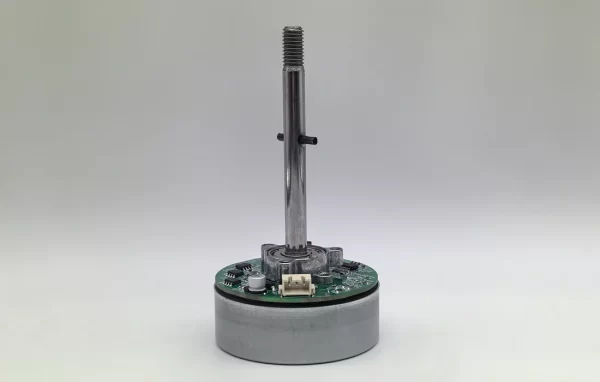

Motor type: External sensorless drive three-phase brushless DC fan motor

Operating voltage: 24 VDC

Rotation direction: CW (from the motor shaft end)

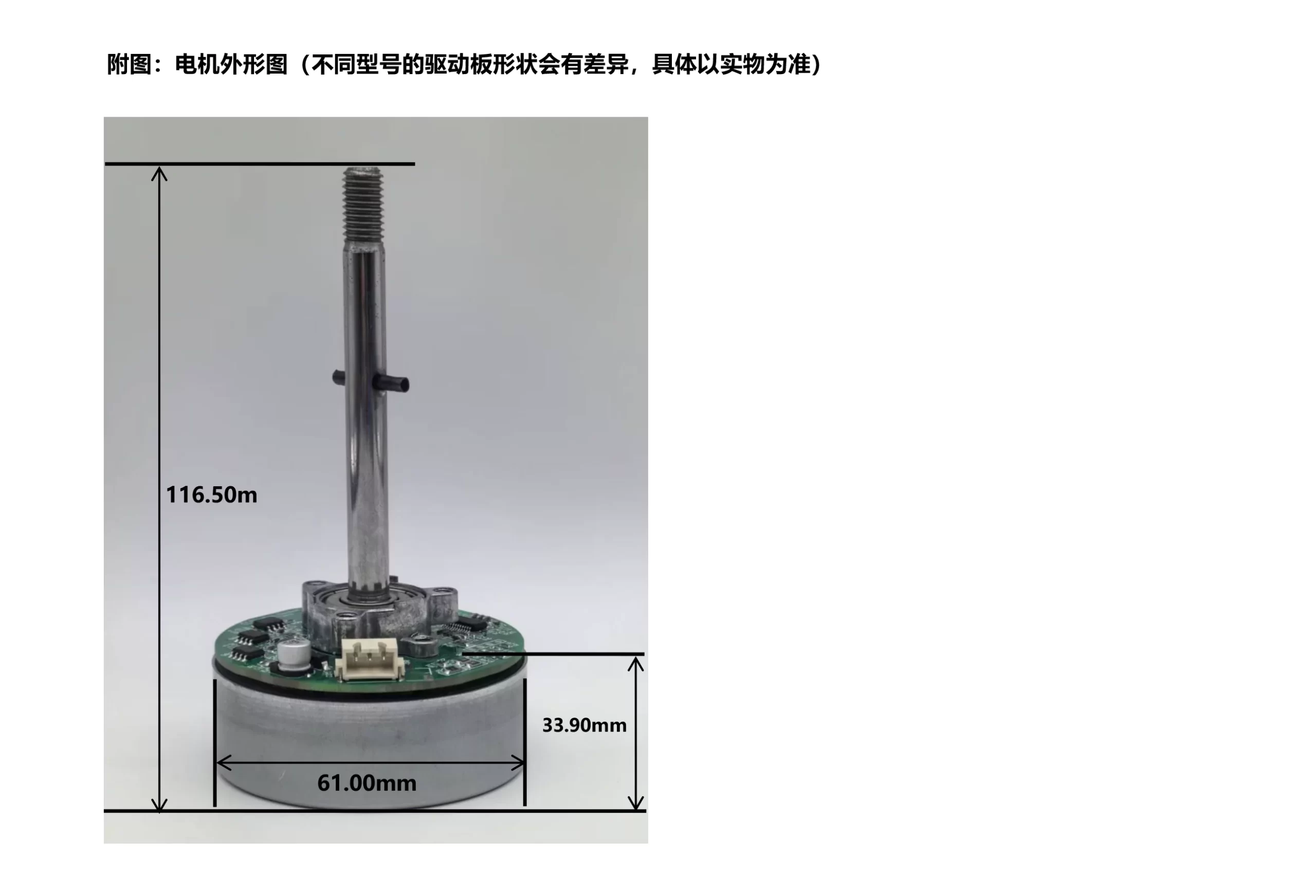

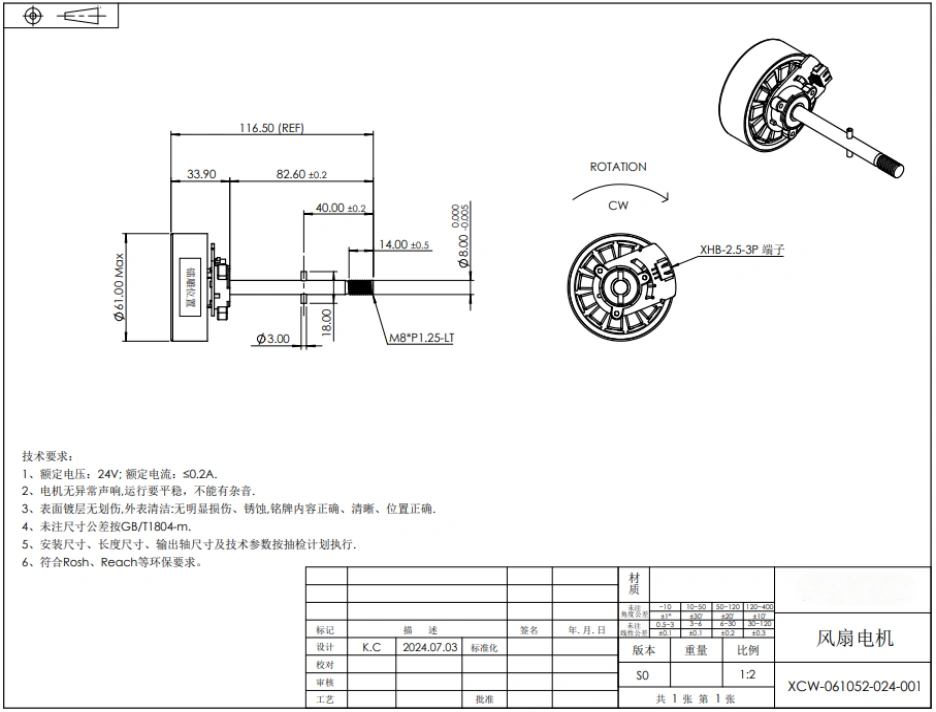

Motor size: Ø61.00xL116.50mm

Shaft diameter: Ø8mm

Motor weight: about 255g

Insulation class: F

Perfomance:

Rated voltage: 24 VDC

Rated load: 16-inch fan blade

Rated speed: 1300 RPM ±8%

Maximum load current: ≤1.2A

Maximum load power: ≤30W

Temperature rise: ≤50K

Maximum noise: ≤ 50 dB(A) @ 30cm REF. [Background noise is less than 40dB(A)]

Notes:

Do not point the fan blade end at people during use.

Do not touch the driver board with bare hands during use. The driver board is a non-isolated board to avoid accidents.

The motor and control board need the wind generated by their own fan blades to dissipate heat. Do not block the air duct or test in a vacuum to avoid burning the motor.
